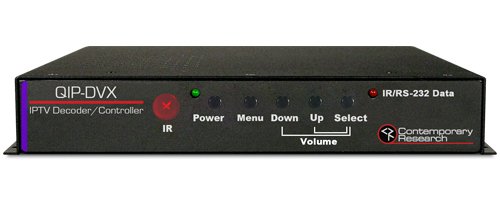

Contemporary Research AV products are designed for easy commercial-grade system integration, and the QIP-DVX Decoder/Controller is an example. The key is that the QIP-DVX operates as a network multicast device for both video streaming and control.

Deploy QIP-DVX Decoder Controllers

• Receives multicast IPTV H.264 programs
• Responds to broadcast control commands
• Controls any display with CEC, RS-232, or IR onboard code database
• Scales output up to 4K
• Access over IP by CR Toolbox app for setup, channels, and testing

Take Control

• Operate with an IR remote
• Send RS-232 or IP commands from the room control system
• Commands are generic; the IP-DVX knows how to control the display (for example, send an IP P1 command to DVX #271, and it turns on the display with CEC, RS-232, or IR)

Enable facility-wide network control

• Add central control with an IP-DXL Display Control Center
• Create network IP control with custom system programming
