ICE-HE Ethernet Head End Controller
Type:
TV and Display Control
Part Number: 5040-001
Size: 19.000 wide x 1.750 high x 9.000 deep
Weight: 3.000
Distribution:
AV over RF
Released: August 2004
More about TV and Display Control
Control systems are designed to simplify your AV technologies so the events and engagements that depend on them run effortlessly. Display Control allows users to centrally manage channel selection, volume, and power on and off of networked video displays.
About ICE-HE Ethernet Head End Controller
The ICE-HE Ethernet Head End Controller converts RS-232 iCC-Net protocol commands for distribution over RF coax systems. Supports Telnet or RS-232.
Replaces
NoneRelated Equipment & Software
Video Distribution and Control Systems
Full Description & Specifications
Contemporary Research introduces a new solution for intelligent television control, the ICE-HE Ethernet Head End Controller. Through a single Ethernet port, the ICE-HE can network thousands of iCC-Net TV controllers and tuner/controllers communicating over the same CATV cable that carries the media channels.
With Ethernet connectivity, software applications and control systems don't have to be located in the same area as the ICE-HE. All that is needed is a full-time Ethernet connection. The industry standard iCC-Net protocol operates seamlessly over Ethernet networks, RS-232 control ports, RF coax, and fiber optic cables.
Distribution: AV over RF

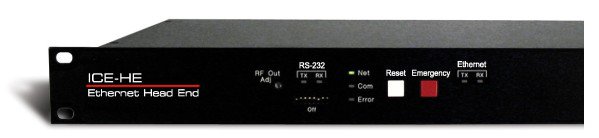

Front Panel:
- RF Out Adjust
- RS-232 TX and RX LEDs
- RS-232 Configuration DIP Switch
- Net LED
- COM LED
- Error LED
- Ethernet TX and RX LEDs
- Reset/Default Button
- Emergency Button
Back Panel:
- Ethernet RJ-45 Jack
- Control RS-232 DB-9 Female
- IC-Net DB-9 Female
- I/O 1 & 2 4-pin Captive Screw Terminal
- RF In "F" Female
- RF Out "F" Female
- 12V Power In
Power:
- Includes PS12-500 Power Supply (5400-001)
