ICC1-232 Display Controller

Type: Display Control
Part Number: 5064-001
Size: 5.500 wide x 1.100 high x 3.400 deep
Weight: 0.500
Distribution: AV over RF
Released: July 2006


Where to Buy

Display Express Specification Sheet
ICC1-232 Product Manual
TV Device Spreadsheet - Single Zone
TV Device Spreadsheet - Multi-Zone
Firmware Installation Manual
ICC1-232 Firmware S19

  • ICC1-232 Product Image

More about Display Control

Control systems are designed to simplify your AV technologies so the events and engagements that depend on them run effortlessly. Display Control allows users to centrally manage channel selection, volume, and power on and off of networked video displays.

About ICC1-232 Display Controller

The ICC1-232 RS-232 TV Controller delivers versatile 1-way control for power, volume, channels, and available control lockout commands, receiving iCC-Net network commands over the same RF coax that carries the CATV channels.

Related Equipment & Software

Display Control

Centrally managed control systems designed to simplify your AV technologies.

Accessories

Contemporary Research offers a variety of product accessories to necessitate or enhance the functionality of AV products.

Video Distribution and Control Systems

Create multiple in-house channels of high-definition content along with simplified display control with CR's present & rack-ready systems.

Full Description & Specifications

The ICC1-232 RS-232 TV Controller delivers versatile 1-way control for power, volume, channels, and available control lockout commands, receiving iCC-Net network commands over the same broadband coax that carries the CATV channels. Compact in size and price, the ICC1-232 features discrete power control, channel tuning, volume control, and local control lockout. Tuning options include analog and HDTV format channels, as well as AV input source selection.

High-speed 1-way control is possible through the same RF cable that carries the TV channels, creating networked operation of distributed media systems without adding control wiring. Compatible with the Contemporary Research Display Express software, the ICC1-232 can be networked with up to 4000 display controllers. For custom systems applications, the ICC1-232 and other CR display controllers can be accessed from a single RS-232 or Ethernet port on an ICE-HE-DXL Display Control Center.

Applications include media distribution and control for educational television systems, theme parks, museums, government facilities, arenas, convention centers, airports, and corporate video networks.

  • Controls most brands of RS-232-controlled displays
  • Delivers absolute power control with discrete RS-232 commands
  • Stores control commands in onboard memory, can be updated via RS-232 or over coax
  • Tunes analog or HDTV format channels
  • Intelligent volume level and mute operation
  • Enables/disables local and IR display control (if supported by display)
  • Receives 1-way individual and zone commands from a single RS-232 port on the ICE-HE-DXL Display Control Center
  • Provides LED feedback for network and RS-232 control
  • Restores power and channel status after loss of power from data stored in non-volatile memory
  • Mounts on the back of display for simplified control and RF installation
  • Operates with Display Express software, as well as from RS-232 protocol from a custom-programmed PC or control system

View Current List of CR Suggest TVs to Use with Display Express Products



Distribution: AV over RF

Physical:
  • Size: 5.5" [140mm] wide x 1.1" [28mm] high x 3.4" [86mm] deep
  • Weight: 8 oz [226g]
  • Enclosure: All aluminum with durable black powder coat paint
  • Mounting: Mounts rear of display

Front Panel:
  • RF In: 'F', female, 75 ohm impedance, RF from CATV system, iCC-Net control
  • RF Out: ‘F', female, 75 ohm impedance, RF to TV
  • Low-loss internal tap - less than 1.5 dB loss
  • Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active
  • RS-232: DB-9 male connector, baud rates from 1200 to 115,000 baud
  • Optional CC-232 RS-232 available to match specific makes and models
  • Tx LED: Red LED lights when RS-232 information is sent
  • Rx LED Yellow LED lights when RS-232 information is received
  • Power In: 2.1mm coaxial jack (inside center conductor positive), 75 mA maximum
  • 11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
  • DIP Switches: Located on bottom of unit, sets device number

ICC-Net:
  • Operation: 1-way control, carried over the same RF coax connection as TV channels
  • Data Receive: Mid-band VHF, 74.7MHz, sent from IC Head-End Network Controller , -25 to +35 dBmV signal level

Includes:
  • 5400-001, PS12-500 Power Supply
  • 5062-003, RF "Loop Thru" Cable
  • Mounting Kit

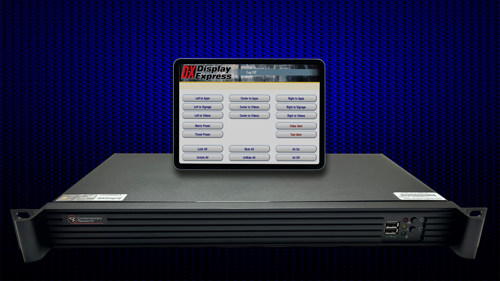

Display Express Server Cropped Front View
